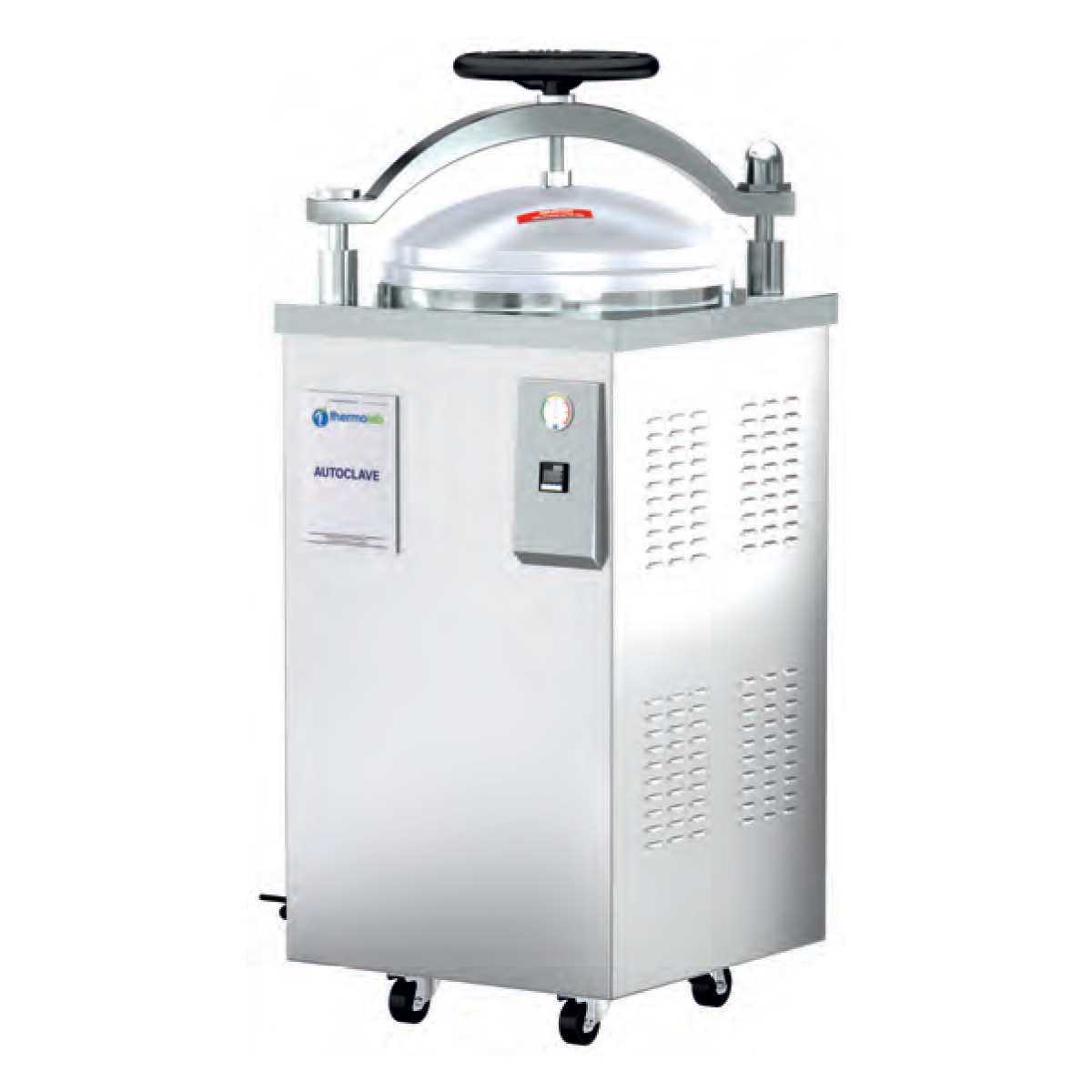

Basic Vertical Series Sterilizers
Applications:
- Labs
- Institutes
- Hospitals
Standard Features
Safety Features
Technical Data
Standard Features
- Inside & Outside made of Stainless steel 304 Cuboidal Body Shape. Microprocessor based PID Control system with digital display.
- Automatic shut off of cycle after completion of sterilization period. 2 Nos. of Stainless steel perforated basket with Lid.
- Castor wheels for easy movement
- Guaranteed Soak with Settable Hold Band. Self-inflating type leak proof seal.
- Digital display of working status Analogue pressure display.
- Radial wheel type mechanism for easy opening
Safety Features
- Numeric password protected operation with single user.
- Spring loaded safety valve for over pressure.
- Door safety lock system Pressure interlock.
- Temperature high & low Audio-visual alarms.
- MCB for electrical safety.
Technical Data
| Model | SB21050GR | SB21075GR | SB21100GR |
| Capacity | 50 Liters | 75 Liters | 100 Liters |
| Working Pressure | 15 PSI / 0.10 Mpa. | ||
| Control System | PID Controller | ||
| Working Temperature /
Accuracy |
+1°C | ||
| Uniformity | +1°C | ||
| Timer | 1 to 999 minutes (Built in) | ||
| Accessories | 2 Nos stainless steel perforated basket with lid. | ||
| Power | 3KW/220VAC/50Hz | 4.5KW/220VAC/50Hz | 4.5KW/220VAC/50Hz |
| Chamber Size (Internal) | Dia. 340 x 550 H (mm) | Dia. 400 x 600 H (mm) | Dia. 440 x 650 H (mm) |
| Overall Dimension (mm) | 510 x 470 x 1130 | 510 x 470 x 1130 | 540 x 560 x 1250 |
| Packing dimension (mm) | 590 x 590 x 1280 | 590 x 590 x 1280 | 680 x 630 x 1370 |
| Net Weight/ Gross
Weight |
68/88 kg | 80/100 kg | 85/110 kg |
