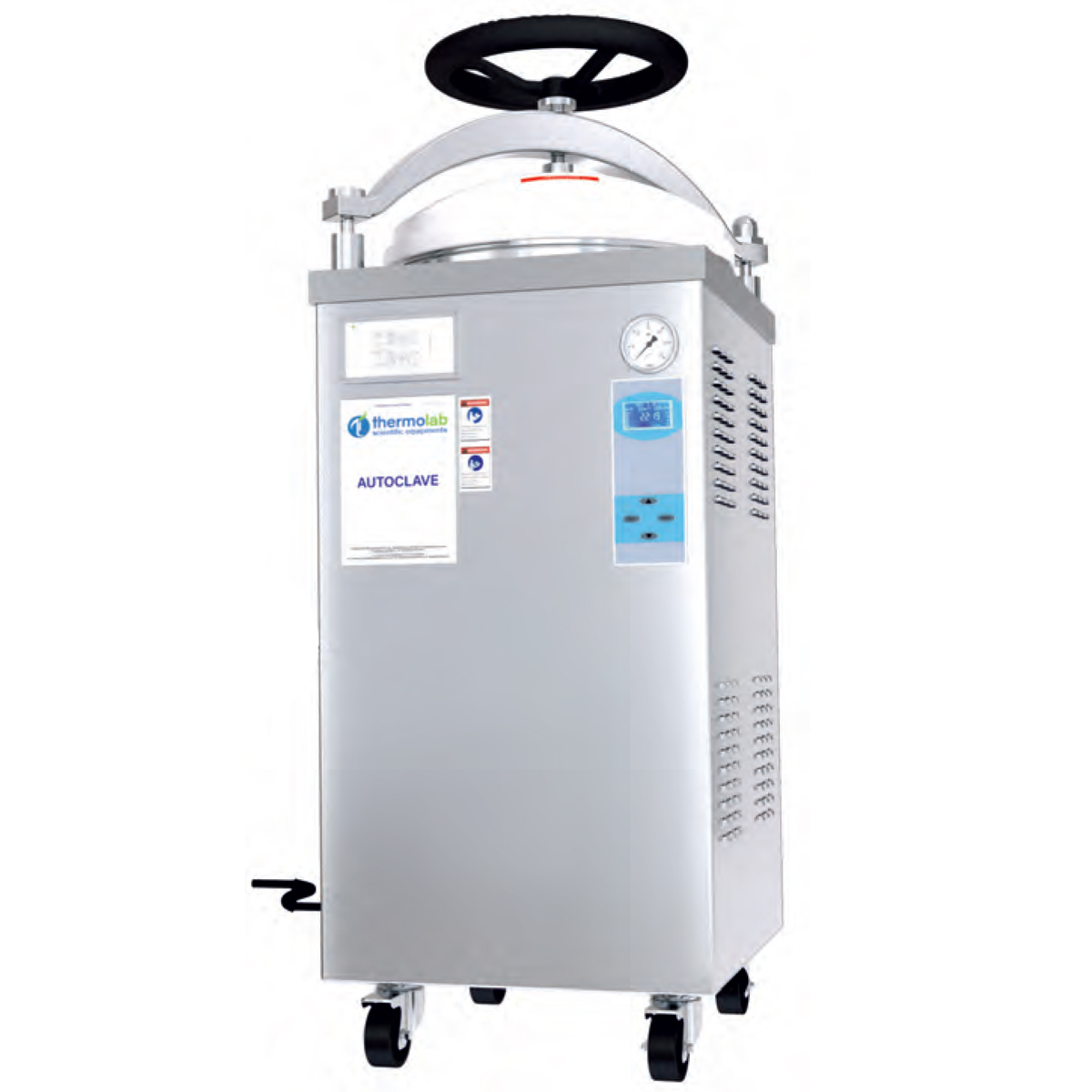

Thermal Series - Fully Automatic
Applications:
- Labs
- Institutes
- Hospitals
Standard Features
Safety Features
Technical Data
Standard Features
- Inside & Outside made of Stainless steel 304 with cuboidal body shap
- Automatic shut off of cycle after completion of sterilization period with automatic steam exhaust
- Microprocessor based PID controller with digital display & PT 100 senso Built in Program.
- Display and data logging of FO Value.
- 2 Nos. of stainless steel perforated Basket with Lid.
- Castor wheels for easy movement.
- Guaranteed Soak with Settable Hold Band.
- Self-inflating type leak proof seal.
- Digital display of working status
- Analogue pressure display.
- Online/offline data printing of 1 Temperature + 1 pressure on Thermal Printer
- Built in Thermal Printer with the equipment.
- Radial wheel type mechanism for easy opening
Safety Features
- Password protected operation.
- Spring loaded safety valve for over pressure.
- Door safety lock system-Pressure interlock.
- Temperature high & low Audio-visual alarms.
- Low Water Level indication on display.
- MCS for electrical safety.
Technical Data
|
Model |
ST34050GR |
ST34075GR |
ST34100GR |
|
Capacity |
50 Liters |
75 Liters |
100 Liters |
|
Working Pressure |
30 PSI / 0.23 Mpa. |
||
|
Control System |
PID Controller |
||
|
Printing |
Thermal Printer |
||
|
Working Temperature / Accuracy |
134°C / +1°C |
||
|
Uniformity |
+1°C |
||
|
Timer |
1 to 999 minutes (Built in) |
||
|
Accessories |
2 Nos stainless steel perforated basket with lid. |
||
|
Power |
3KW/230VAC/50Hz |
4.5KW/230VAC/50Hz |
4.5KW/230VAC/50Hz |
|
Chamber Size (Internal) |
Dia. 340 x 550 H (mm) |
Dia. 400 x 600 H (mm) |
Dia. 440 x 650 H (mm) |
|
Overall Dimension (mm) |
510 x 470 x 1130 |
510 x 470 x 1130 |
540 x 560 x 1250 |
|
Packing dimension (mm) |
590 x 590 x 1280 |
590 x 590 x 1280 |
680 x 630 x 1370 |
|
Net Weight/ Gross Weight |
68/88 kg |
80/100 kg |
85/110 kg |
