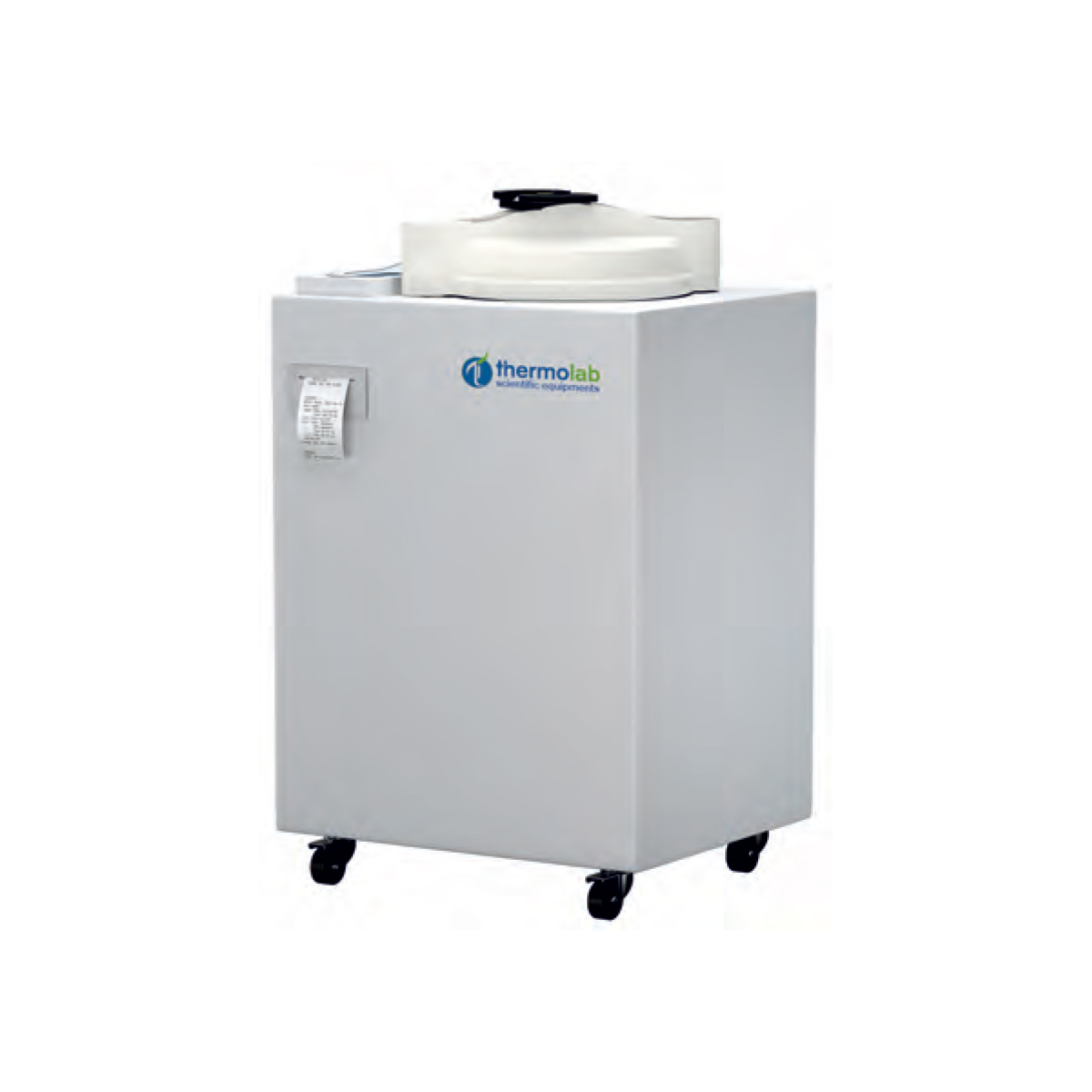

Pulsating Vacuum Series (Class B) - Fully Automatic
Applications:
- Labs
- Institutes
- Hospitals
Standard Features
Optional Features
Technical Data
Standard Features
- Inside & outer body of Stainless steel 304
- Microprocessor controlled digital controller with digital display of working status, (touch type key function)
- Dynamically displays the temperature, pressure, time, vacuum rate & cycle status.
- Controls fully automatic route of water inlet, pulse vacuum heating, sterilizing, draining, exhaust & vacuum drying.
- 3 times pulse vacuum. The vacuum rate will reach -0081 MPa follows with complete extraction of inner air for the dressing A and B type hollowed appliance.
- Provided with 4 fix programs for Appliances, Medical dressing, Rubber & Fluid Media.
- Auto start of cycle on resumption of power supply
- Guarantee soak with settable hold band.
- Data logging of control sensor, pressure sensor and FO value.
- Multiple pulse vacuum drying after sterilization cycle for optimum results.
- Automatic shut off of cycle after completion of sterilization period with automatic steam exhaust.
- Provided with 2 Nos, of stainless steel perforated basket with Lid
- Password protected user management software
- Castor wheels for easy movement with Hand wheel type locking mechanism.
- Equipped with PT/TT testing connector for ease of operations alongwith self-inflating type leak proof seal.
Optional Features
- Can be provided with 0.22 m, Bacteria filter to ensure the air enters the inner vacuum chamber is sterile, avoiding second-time contamination. Most useful for biological waste decontamination and discord cycles.
- Inner SS 316 Chamber (in case of Biosafety application)
Technical Data
|
Model |
SV34050CS |
SV34075CS |
SV34100CS |
|
Capacity |
50 Liters |
75 Liters |
100 Liters |
|
Working Pressure |
30 PSI / 0.22 Mpa. |
||
|
Control System |
Microprocessor Digital Controller |
||
|
Working Temperature / Accuracy |
134°C / +1°C |
||
|
Uniformity |
+1°C |
||
|
Vacuum |
-0.081 MPa |
||
|
Filter |
Provided for exhaust Steam Filtration |
||
|
Steam Generator |
Separate steam Generator is provided |
||
|
Timer |
1 to 999 minutes (Built in) |
||
|
Accessories |
2 Nos stainless steel perforated basket with lid. |
||
|
Power |
4.8KW/230V AC/50Hz |
5KW/230V AC/50Hz |
5.2KW/230V AC/50Hz |
|
Chamber Size (Internal) |
Dia. 340 x 550 H (mm) |
Dia. 400 x 600 H (mm) |
Dia. 440 x 640 H (mm) |
|
Overall Dimension (mm) |
660 x 460 x 1160 |
700 x 510 x 1250 |
700 x 510 x 1250 |
|
Net Weight/ Gross Weight |
68/88 kg |
80/100 kg |
85/110 kg |
