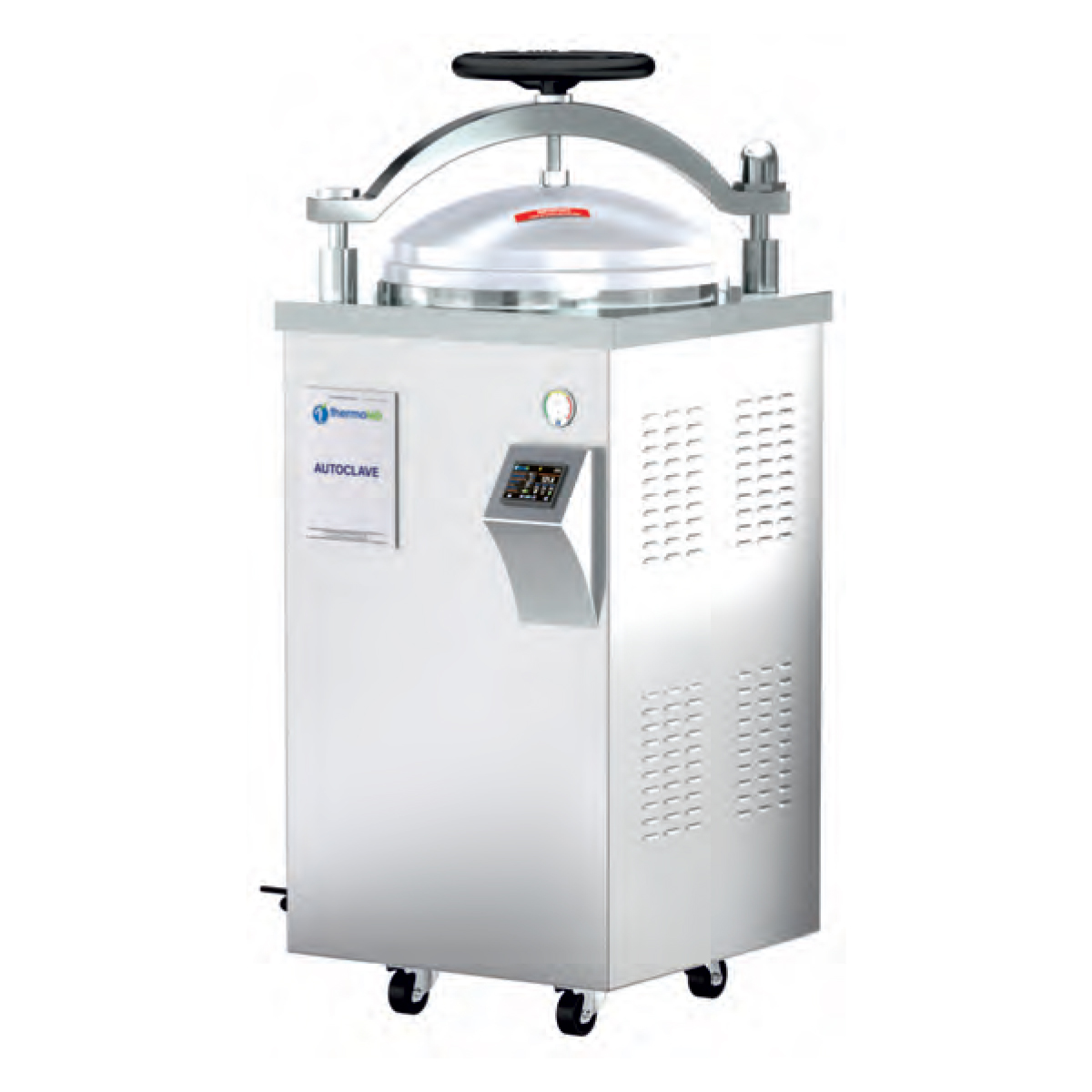

Premium Series - Fully Automatic
Applications:
- Labs
- Institutes
- Hospitals
Standard Features
Safety Features
Optional Features
Technical Data
Standard Features
- Inside & Outside made of Stainless steel 304 with cuboidal body shape.
- Microprocessor based HMI 4.3”coloured touch screen display.
- Display of temperature sensor and pressure.
- Data logging of control sensor, pressure sensor and FO value.
- Analogue pressure gauge provided for online monitoring of pressure.
- Settable-Cycle Auto Start after Power Resume
- Guaranteed soak with settable hold band
- Automatic Purging and exhaust
- Auto discharge the cool air, & steam after sterilization.
- Automatic shut off of cycle after completion of sterilization period.
- 2 Nos, of stainless steel perforated basket with Lid
- Password protected user management software
- Castor wheels for easy movement
- Self-inflating type leak proof seal
- Digital display of working status
- Pre-programmed cycles
- Radial wheel type mechanism for easy opening
Safety Features
- Spring loaded safety valve for over pressure.
- Door safety lock system-Pressure interlock.
- Temperature high & low Audio-visual alarms.
- Low Water Level indication on display.
- Password protected operation.
- MCS for electrical safety
Optional Features
- Data logging of Total 5 sensor.
- Printer Interface for Online Printing on 80 col Dot matrix Printer
- Software connectivity.
Technical Data
|
Model |
SP34050GR |
SP34075GR |
SP340100GR |
|
Capacity |
50 Liters |
75 Liters |
100 Liters |
|
Working Pressure |
0.22 Mpa / 0.23 Mpa. |
||
|
Control System |
Coloured HMI 4.3” Touch Screen Display |
||
|
Printing |
8000 records in printing memory of hardware last 8000 records in PC memory of hardware. |
||
|
Working Temperature / Accuracy |
134°C / < +1°C |
||
|
Uniformity |
+1°C |
||
|
Timer |
1 to 999 minutes |
||
|
Accessories |
2 Nos stainless steel perforated basket with lid. |
||
|
Power |
3KW/220VAC/50Hz |
4.5KW/220VAC/50Hz |
4.5KW/220VAC/50Hz |
|
Chamber Size (Internal) |
Dia. 340 x 550 H (mm) |
Dia. 400 x 600 H (mm) |
Dia. 440 x 650 H (mm) |
|
Overall Dimension (mm) |
510 x 570 x 1130 |
560 x 660 x 1120 |
540 x 660 x 1250 |
|
Packing dimension (mm) |
590 x 690 x 1280 |
650 x 730 x 1280 |
680 x 730 x 1370 |
|
Net Weight/ Gross Weight |
68/88 kg |
80/100 kg |
85/110 kg |
