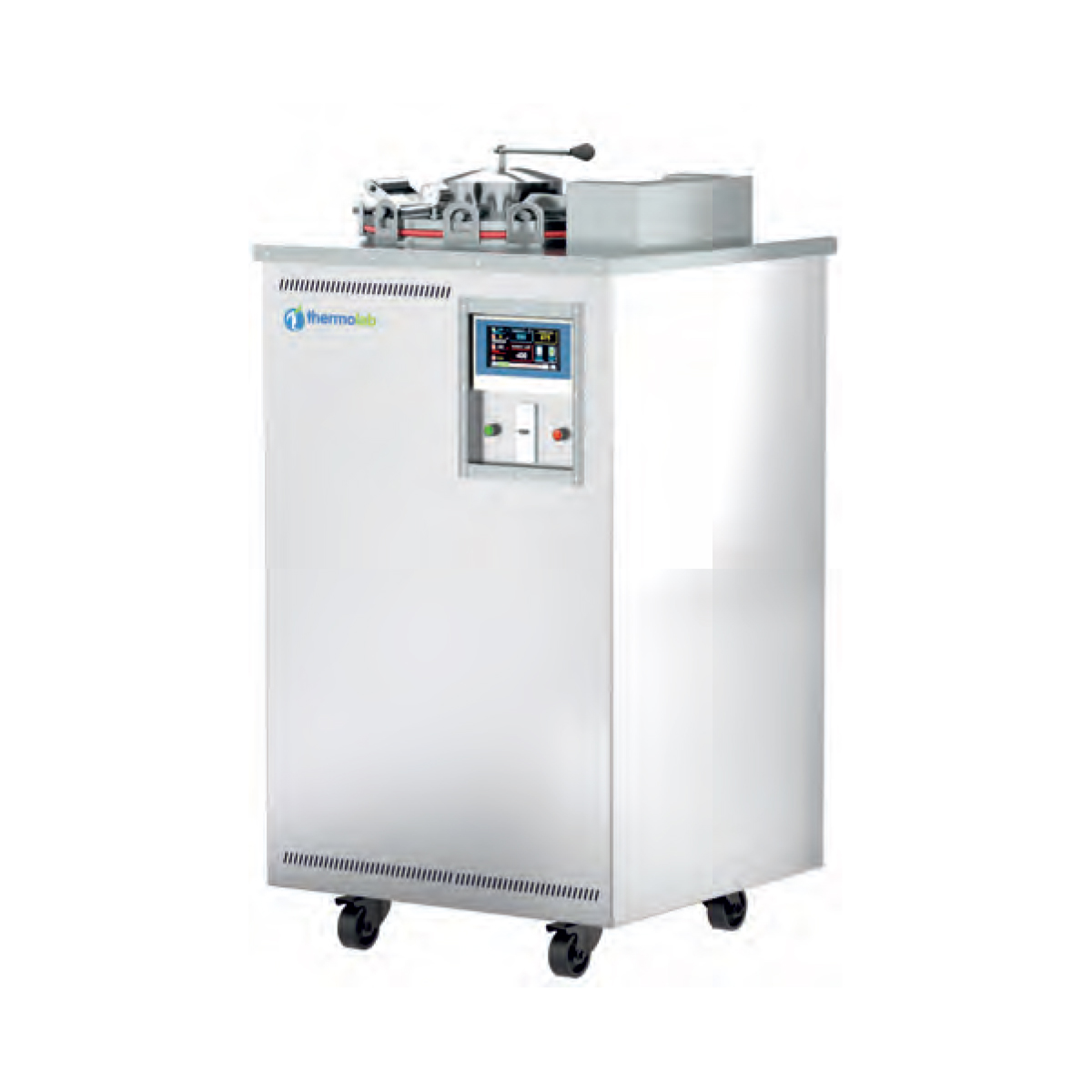

Neo Series - Fully Automatic
Applications:
- Labs
- Institutes
- Hospitals
Standard Features
Safety Features
Optional Features
Technical Data
Standard Features
- Inside & outer body of Stainless steel 304.
- Microprocessor based HMI 4.3″colored touch screen display.
- Display of temperature sensor and pressure.
- Data logging of control sensor, pressure sensor and FO value.
- Analogue pressure gauge provided for online monitoring of pressure.
- Automatic shut off of cycle after completion of sterilization period with automatic steam exhaust.
- Settable-Cycle Auto Start after Power Resume.
- 2 Nos, of stainless steel perforated basket with Lid.
- Password protected user management software.
- Castor wheels for easy movement.
- Single Liver Locking Mechanism
- Guaranteed Soak with Settable Hold Band.
- Automatic Purging and exhaust.
- Self-inflating type leak proof seal.
- Digital display of working status.
- Pre-programmed cycles.
Safety Features
- Spring loaded safety valve for over pressure.
- Door safety lock system-Pressure interlock.
- Temperature high & low Audio-visual alarms.
- Low Water Level indication on display.
- Password protected operation.
- MCS for electrical safety.
Optional Features
- Scanner with 4 temperature sensor .
- Printer interface to print data on printer Software for graphical and tabular reports
- 80 Column Dot Matrix Printer Epson Make
Technical Data
|
Model |
SN21050GS |
SN21075GS |
SN21100GS |
SN21120GS |
SN21180GS |
|
Capacity |
50 Liters |
75 Liters |
100 Liters |
120 Liters |
180 Liters |
|
Working Pressure |
15 PSI / 0.10 Mpa. |
||||
|
Control System |
Colored HMI 4.3” Touch Screen Display |
||||
|
Working Temperature / Accuracy |
121°C / +1°C |
||||
|
Uniformity |
+1°C |
||||
|
Timer |
1 to 999 minutes (Built in) |
||||
|
Accessories |
2 Nos stainless steel perforated basket with lid. |
||||
|
Power |
|
||||
