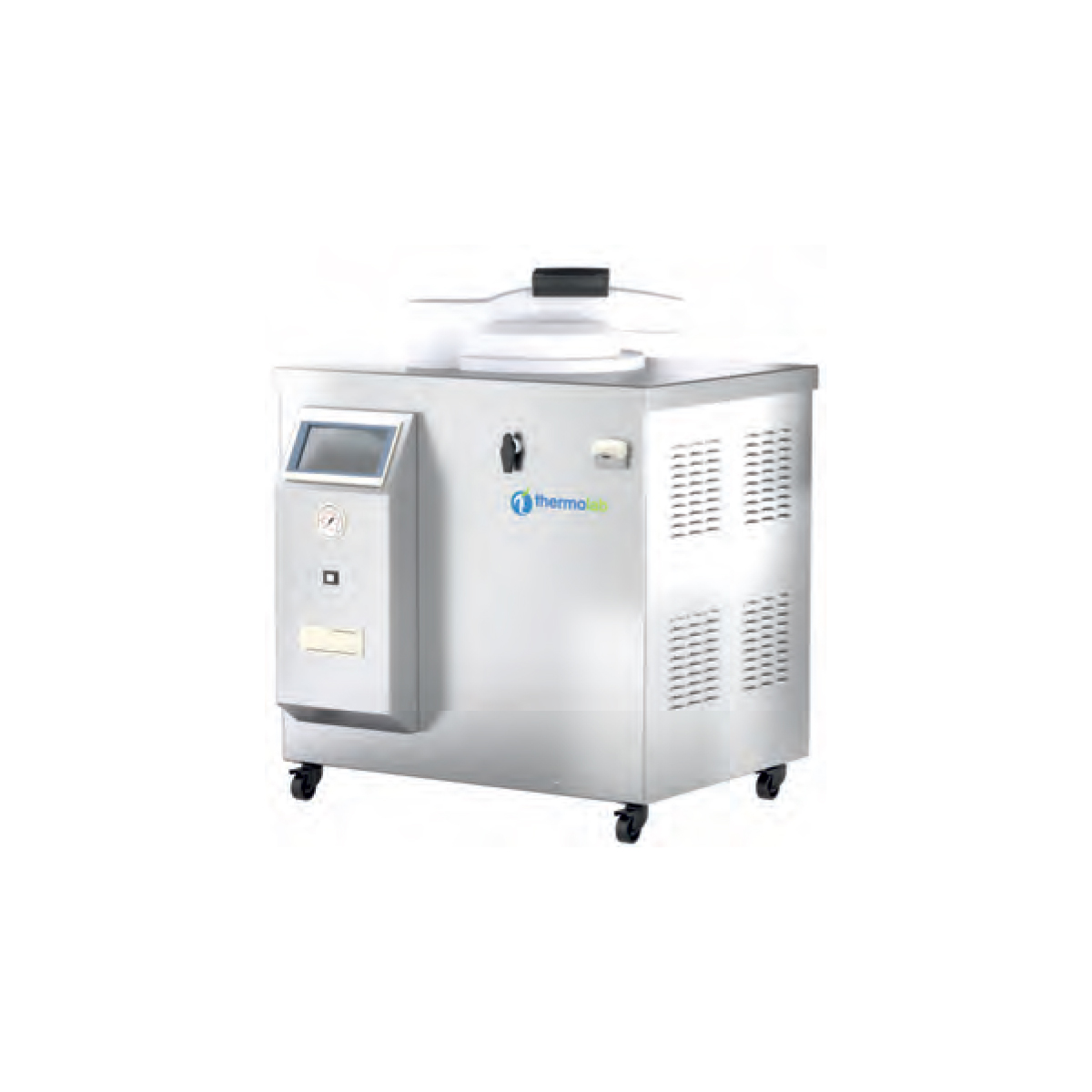

Media Preparator
Applications:
- Labs
- Institutes
- Hospitals
Standard Features
Thermal Printer for data records Peristaltic pump
Control Features
Safety Features
Optional Features
Technical Data
Standard Features
- Inner Chamber and sterilizer cylinder made of SS316L & outer made of stainless Steel Ss304.
- Horizontal sliding (Single Lever).
- Built-in air compressor for pressure maintenance
- Keep stirring with a magnetic stirrer to ensure the medium is fully & evenly mixed & the temperature is uniform.
- The liquid program has an automatic control function for cooling back pressure.
- Throughout the process, the culture medium is fully mixed, heated, sterilized & cooled to the set portioning temperature.
- Efficient heating & cooling
- Analogue pressure gauge provided for online monitoring of pressure.
- Equipped with a safety valve & pressure gauge, the relief valve
- Easy to operate, safe, and reliable. Provided with castor wheels.
- Single Lever locking Mechanism
- Uses steam under pressure (usually 121°C at 15 psi) to sterilize the media. Kills all microorganisms, including bacterial spores.
- Continuous stirring through a magnetic stirrer ensures full mixing of the medium and uniform temperature.
- Allows for accurate mixing of powdered media and water. Can be programmed to heat and maintain media at specific temperatures for specific durations.
- After sterilization, the unit cools the media to a pourable temperature (typically 45-50°C for agar).
- Suitable for preparing large batches of media, often 5-80 litters. Ensures homogeneity and consistency across all batches.
- Media sterilization temperature range: up to 134°C. Media dispense temp range: 40~80°C.
- Exchangeable media vessels & hence easy to clean and enables back to back preparation of different media.
- Inbuilt support pressure mechanism/system
Thermal Printer for data records Peristaltic pump
- Peristaltic pump is for automatic dispensing of sterile culture media after preparation and sterilization which ensures no risk of cross-contamination.
Control Features
- Coloured Touch Screen HMI of 4.3″ Programmable HMI touch screen controller, the whole process of automatic control, display the running process status with multiple programs.
- Power of hold function, after re-connecting the power.
- With USB interface, can output and store sterilization records.
Safety Features
- Over-temperature automatic protection device
- Anti-dry burn protection device
- Door safety interlock device
- Thermal insulation hot cover
- Overpressure automatic pressure relief safety valve
Optional Features
- Raw water filter (Optional) Filter ensures prevention blockages in valves, pumps, or dispensers, improves media clarity and consistency.
- Booster water Pump (Optional) Ensure a consistent and pressurized flow of water into the equipment.
Technical Data
| MODEL / Technical Data | SZ34050CS | SZ34080CS |
|---|---|---|
| Inner Chamber Volume | 50 L | 70 L |
| Cavity Size | Φ 386 × 510 | Φ 386 × 700 |
| Chamber Size | Φ 370 × 470 | Φ 370 × 660 |
| Working Temperature | 105–136 ℃ | 105–136 ℃ |
| Design Temperature | 150 ℃ | 150 ℃ |
| Dissolution Temperature | 40–100 ℃ | 40–100 ℃ |
| Holding Temperature | 40–60 ℃ | 40–60 ℃ |
| Working Pressure | 0.23 Mpa / 30 PSI | 0.23 Mpa / 30 PSI |
| Max. Design Pressure | 0.3 Mpa / 43 PSI | 0.3 Mpa / 43 PSI |
| Sterilization Time Range | 0–99 min | 0–99 min |
| Power / Electricals / Frequency | 9 KW / 380 VAC / 50 Hz | 9 KW / 380 VAC / 50 Hz |
| Overall Dimensions (W × D × H) mm | 650 × 790 × 960 | 650 × 790 × 1150 |
| Net Weight / Gross (kg) | 85 / 105 | 95 / 120 |
| Power | Works on 230V AC 50Hz | |
| Sr No | Item Description |
|---|---|
| 1 | Inbuilt Thermal Printer |
| 2 | Peristaltic Pump |
| 3 | Raw Water Filter |
| 4 | Booster Water Pump |
