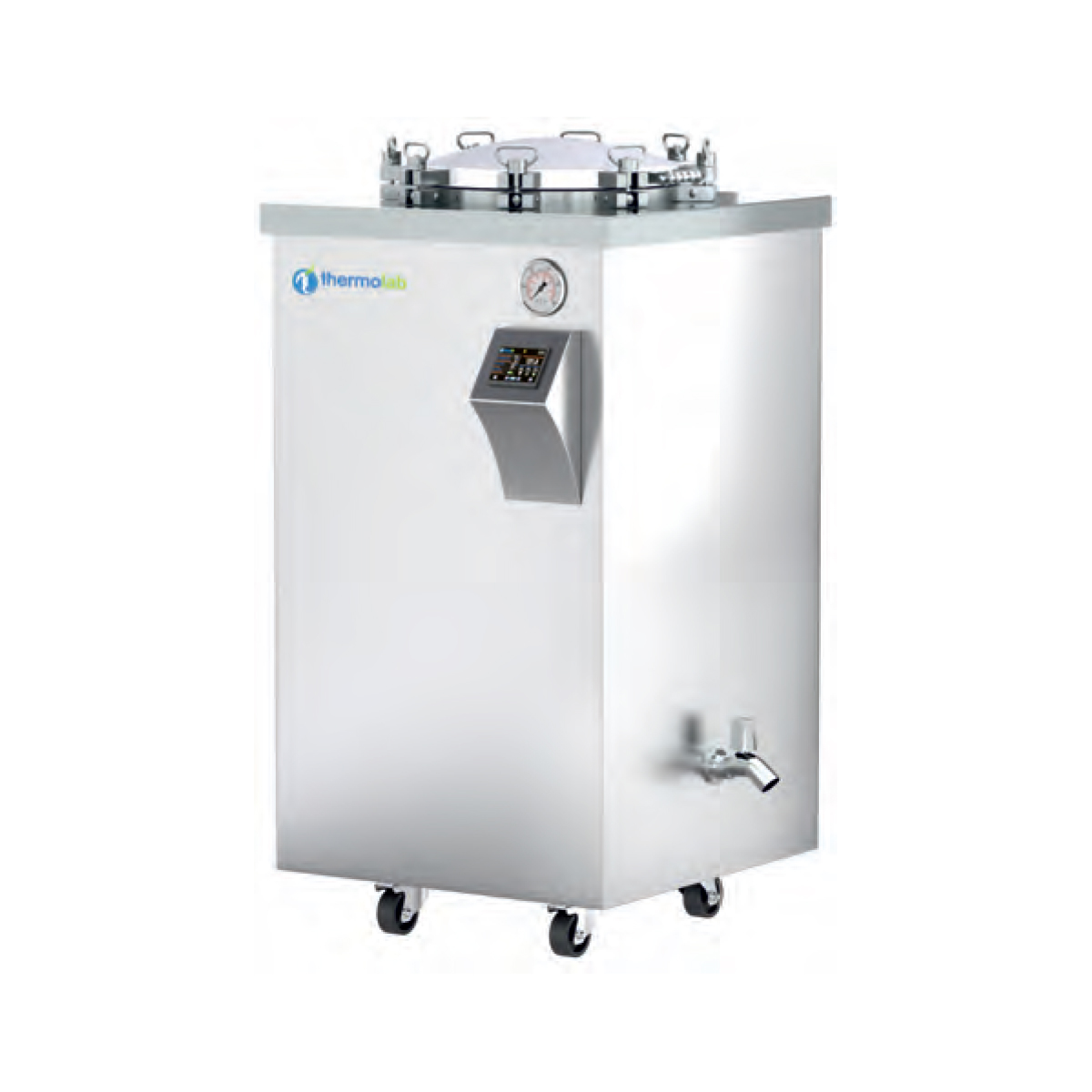

Max Series - Fully Automatic
Applications:
- Labs
- Institutes
- Hospitals
Standard Features
Safety Features
Optional Features
Technical Data
Standard Features
- Inside & outer body of Stainless steel 304.
- Microprocessor based HMI 4.3″colored touch screen display.
- Display of temperature sensor and pressure.
- Data logging of control sensor, pressure sensor and FO value.
- Analogue pressure gauge provided for online monitoring of pressure.
- Automatic shut off of cycle after completion of sterilization period with automatic steam exhaust.
- Settable-Cycle Auto Start after Power Resume.
- 2 Nos, of stainless steel perforated basket with Lid.
- Password protected user management software.
- Castor wheels for easy movement.
- Guaranteed Soak with Settable Hold Band.
- Automatic Purging and exhaust.
- Self-inflating type leak proof seal.
- Digital display of working status.
- Pre-programmed cycles.
- Lid type locking for positive sealing.
Safety Features
- Spring loaded safety valve for over pressure.
- Door safety lock system-Pressure interlock.
- Temperature high & low Audio-visual alarms.
- Low Water Level indication on display.
- Password protected operation.
- MCS for electrical safety.
Optional Features
- Data logging of Total 5 sensor.
- Printer Interface for Online Printing on 80 col Dot matrix Printer
- Software connectivity.
Technical Data
| Model | SM34150GL | SM34200GL |
| Capacity | 150 Liters | 200 Liters |
| Working Pressure | 30 PSI / 0.23 Mpa. | |
| Control System | Colored HMI 4.3” Touch Screen Display | |
| Working Temperature /
Accuracy |
134°C / +1°C | |
| Uniformity | +1°C | |
| Timer | 1 to 999 minutes (Built in) | |
| Accessories | 2 Nos stainless steel perforated basket with lid. | |
| Power | 4KW/230V AC/50Hz – 1 Phase | 6KW/230V AC/50Hz – 1 Phase |
| Chamber Size (Internal) | Dia. 340 x 550 H (mm) | Dia. 400 x 600 H (mm) |
| Overall Dimension (mm) | 510 x 470 x 1130 | 510 x 470 x 1130 |
| Packing dimension (mm) | 590 x 590 x 1280 | 590 x 590 x 1280 |
| Net Weight/ Gross Weight | 110/130 kg | 120/150 kg |
