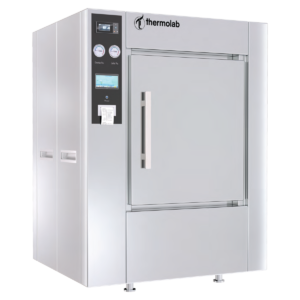

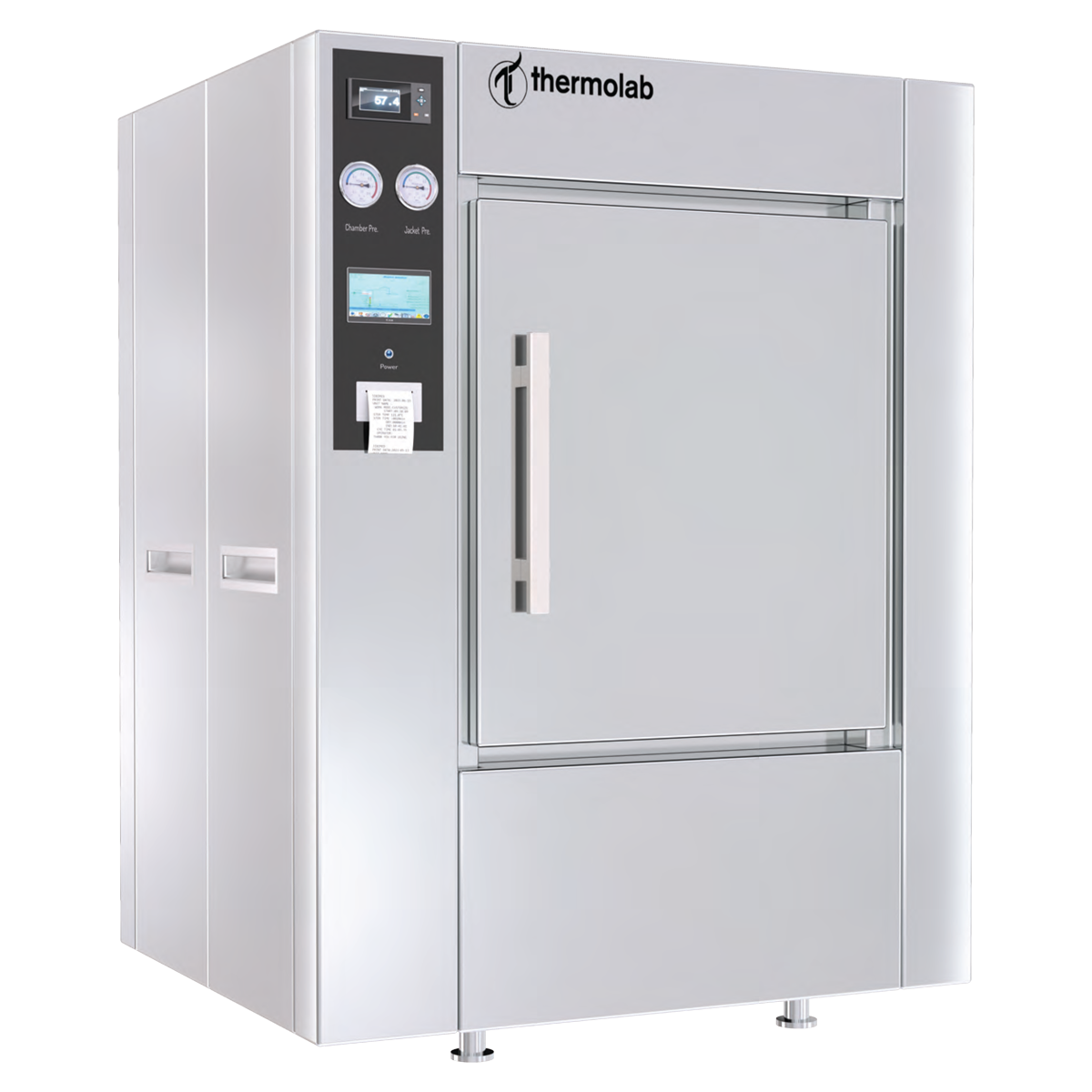

Horizontal Autoclave Double Door
Mechanical door pulse vacuum sterilizer autoclaves with chamber volumes ranging from 250 Litres to 4000 Litres. Available with one or two hinged door with automatic locking.
Horizontal Autoclaves are pre-programmed with 5 perfectly optimized cycle programs that cover the processing needs of most CSSDs and Operating Rooms.
- Material contact with steam made of Stainless Steel structure
- SS 304 stainless steel
- 7” Multi-colour touch screen panel
- Siemens PLC and colourful
- Automatic hinged door locking
- With standard GMP authentication
- Smart automatic draining
- Rectangular cross section with European ring-type jacket
- 21 CFR part 11
- 10” Multi-colour touch screen
- Provides real-time data to any process workflow management system supporting Modbus
- Smart automatic drainage system, water—conservation noise reduction
|
Designed Pressure of Inner Chamber |
-0.1- 0.3MPo |
|
Designed Pressure of Jacket |
0.3MPa |
|
Designed Temperature |
150°C |
|
Maximum Working Temperature |
139°C |
|
Maximum Working Pressure |
0.25MPa |
|
Vacuum Leakage Rate |
*0.13KPa/min |
|
Ultimate Vacuum |
-97KPa |
|
Opening Pressure for Inner Chamber’s Safety Valve |
0.28MPa |
|
Opening Pressure for Jacket’s Safety Valve |
0.28 MPa |
|
Precision of Sterilization Temperature Control |
0-2°C |
|
Temperature Uniformity |
1°C |
|
Negative Pressure Pulsation Vacuum Amplitude and Times |
Amplitude —80-0KPa, Times 1-99 |
|
Times of Pulses Across Pressure |
Amplitude -80-80KPa, Times 1 |
|
Times of Positive Pressure Pulses |
01-Mar |
- Stainless steel pull out Trays equipped with rails for easy loading and The rails are designed to prevent the trays from rolling over.
- 316L loading carts are designed to roll from the transfer carriage onto the chamber rails for easy handling of heavy loads.
- Swivel wheels with wheel breaks maximize mobility in limited
- Safety lock for ease of use & sliding presentation of carriage
- Rectangular cross section with European ring-type jacket with reinforcing
- Two interlocked pneumatically sealed doors as per
- SS 304 interior liner and door panels for steam contact along with the gear rack and
- High—quality Q245R material specific jacket for pressure vessels (S30408 optional).
- Standard GMP authentication
- Double pulsation processes for removal of interior air, improving fatigue life of
- Excellent drying
| Model | Size of Liner (W×H mm) | Depth (mm) | Volume (L) | Overall Size (L×W×H mm) | Steam Consumption (Kg/C) | Tap Water (Kg/C) | Power |
|---|---|---|---|---|---|---|---|
| Model 1 | 550 × 550 | 845 | 250 | 1136 × 1310 × 1880 | 18 | 120 | 2KW + 4KW |
| Model 2 | 610 × 610 | 1000 | 360 | 1320 × 1350 × 1930 | 22 | 180 | 2KW + 30KW |
| Model 3 | 610 × 910 | 1150 | 600 | 1470 × 1410 × 2100 | 35 | 320 | 3KW + 36KW |
| Model 4 | 610 × 910 | 1490 | 800 | 1820 × 1410 × 2100 | 47 | 400 | 3.5KW + 48KW |
| Model 5 | 610 × 910 | 1815 | 1000 | 2250 × 1410 × 2100 | 55 | 500 | 3.5KW + 54KW |
