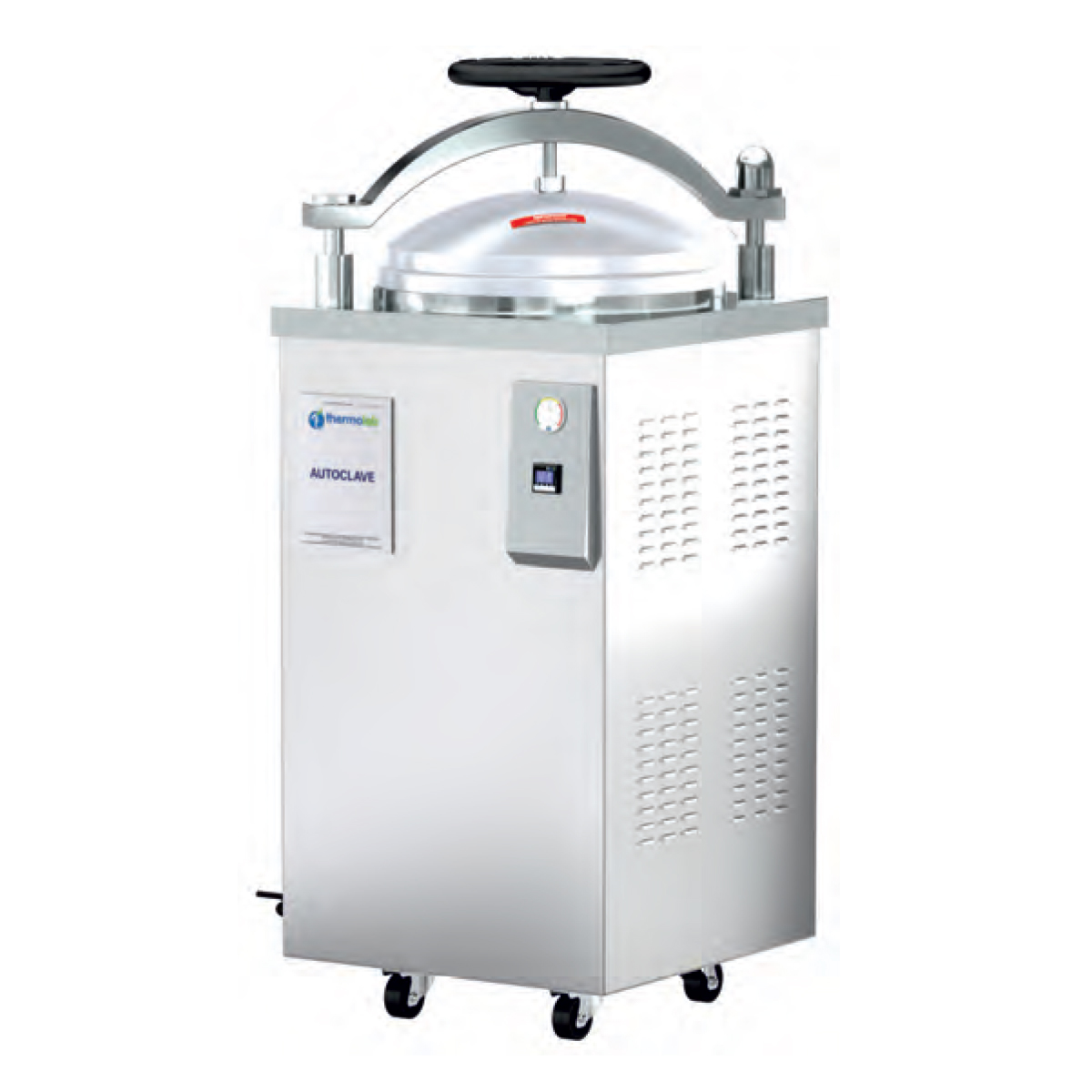

Elite Series - Semi Automatic
Applications:
- Labs
- Institutes
- Hospitals
Standard Features
Safety Features
Optional Features
Technical Data
Standard Features
- Inside & Outside made of Stainless steel 304 with cuboidal body shape Microprocessor based LCD type controller 96 X 96
- Display of temperature sensor and pressure.
- Online Data logging of control sensor, pressure sensor and FO value. Analogue pressure gauge provided for online monitoring of pressure. Settable Cycle Auto Start after Power Resume.
- Guaranteed soak with settable hold band Automatic Purging and exhaust.
- Automatic shut off of cycle after completion of sterilisation period. 2 Nos. of Stainless steel perforated Basket with Lid.
- Castor wheels for easy movement. Self-inflating type leak proof seal. Digital display of working status.
- Settable timer (1-999 minutes).
- Radial wheel type mechanism for easy opening
Safety Features
- Spring loaded safety valve for over pressure.
- Door safety lock system-Pressure interlock.
- Temperature high & low Audio-Visual Alarms.
- Low water level cut off.
- Password protected operation.
- MCB for Electrical Safety.
Optional Features
- Data logging of Total 5 sensor
- Printer Interface for Online Printing on 80 col Dot matrix Printer
- Software connectivity
Technical Data
|
Model |
SE34050GR |
SE34075GR |
SE34100GR |
|
Capacity |
50 Liters |
75 Liters |
100 Liters |
|
Working Pressure |
30 PSI / 0.23 Mpa. |
||
|
Control System |
Micro Processor based LCD control system |
||
|
Working Temperature / Accuracy |
134°C / < +1°C |
||
|
Uniformity |
+1°C |
||
|
Timer |
1 to 999 minutes |
||
|
Accessories |
2 Nos stainless steel perforated basket with lid. |
||
|
Power |
3KW/220VAC/50Hz |
4.5KW/220VAC/50Hz |
4.5KW/220VAC/50Hz |
|
Chamber Size (Internal) |
Dia. 340 x 550 H (mm) |
Dia. 400 x 600 H (mm) |
Dia. 440 x 650 H (mm) |
|
Overall Dimension (mm) |
510 x 470 x 1130 |
560 x 560 x 1120 |
540 x 560 x 1250 |
|
Packing dimension (mm) |
590 x 590 x 1280 |
650 x 630 x 1280 |
680 x 630 x 1370 |
|
Net Weight/ Gross Weight |
68/80 kg |
80/100 kg |
85/110 kg |
